Heavy mobile Bus lift 20T bus heavy duty lift

FOB Reference Price:Get Latest Price
  • >=1 Units
    US $7450.00
Report Suspicious Activity
Overview
Quick Details
Design:
Single Post
Type:
Mechanical type
Certification:
CE
Lifting Capacity:
20T
Lifting Height(mm):
1500mm
Overall Width(mm):
1000mm
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
hoton
Model Number:
QJZ5.0*4
Warranty:
1 Years
Supply Ability
Supply Ability:
2 Set/Sets per Week
Packaging & Delivery
Packaging Details

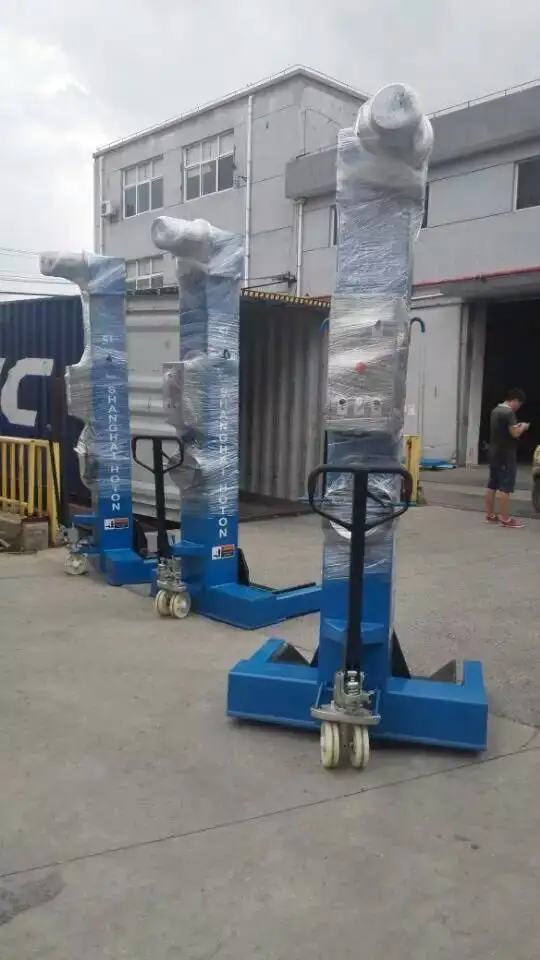

For one post:1120x1100x2600*4 ; one post weight :580kg*4
Port
shanghai

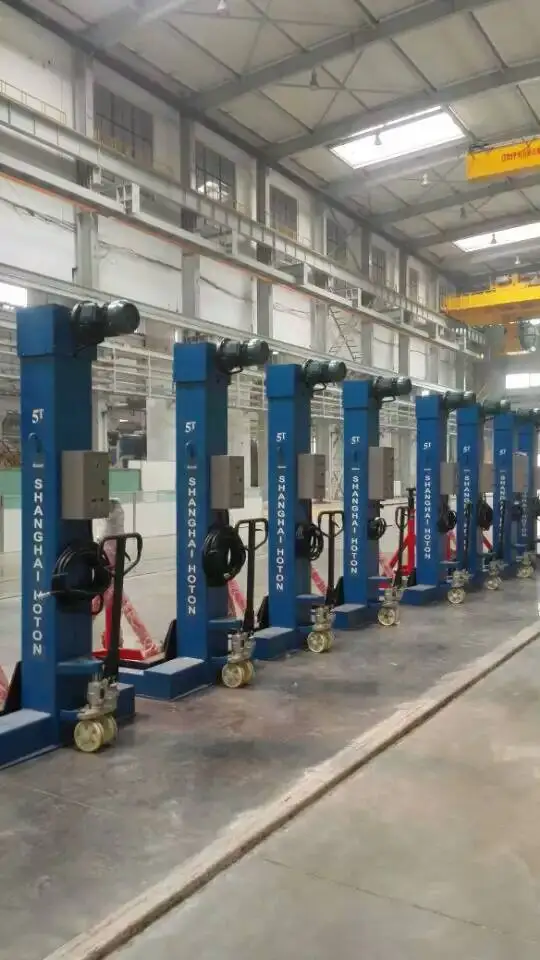

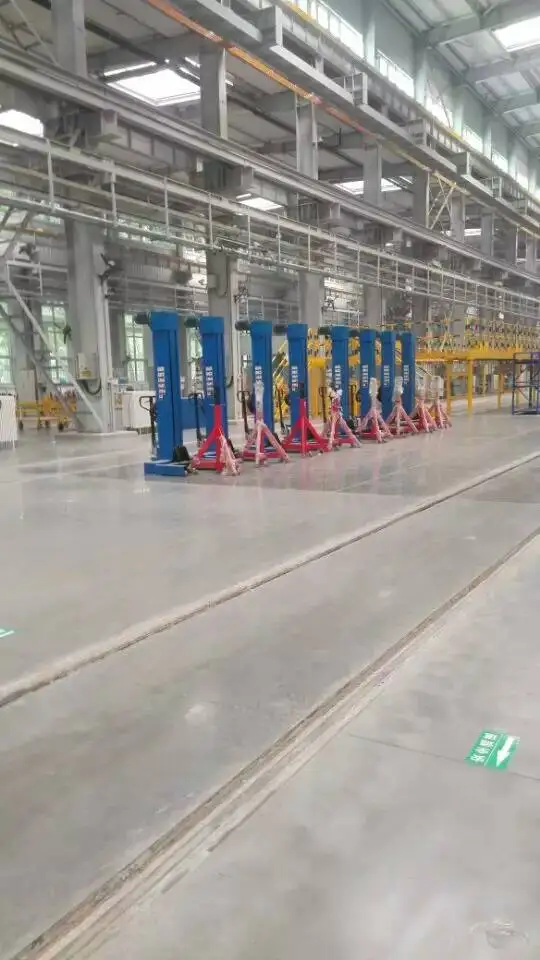

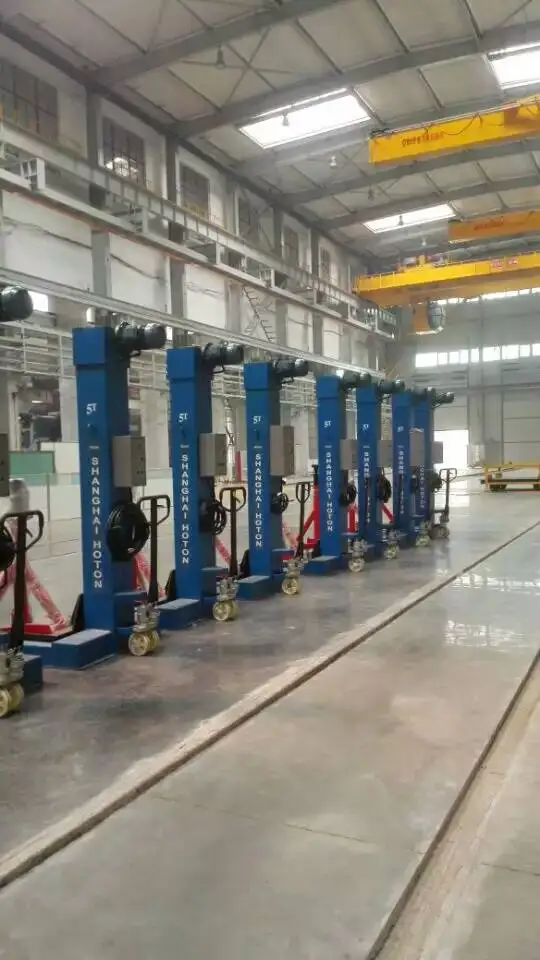

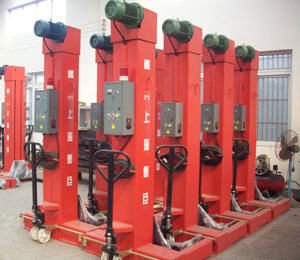

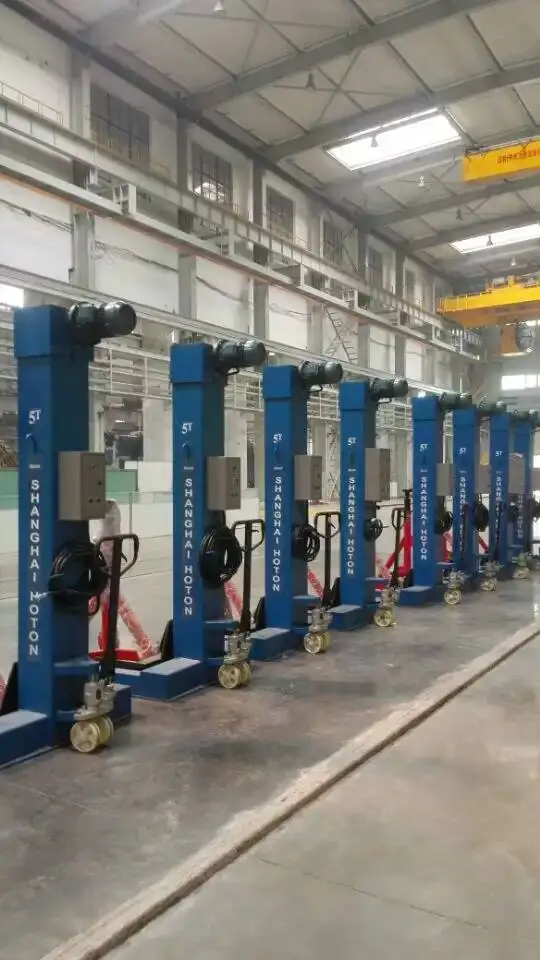

The bus mobile lift is our important  product   -large  mechanical  lift


Lift  vehicle

1:


2:

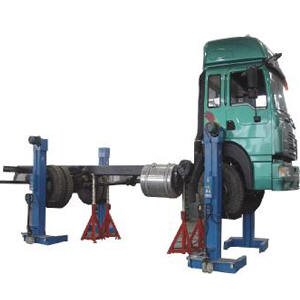

     QJZ2.5/5.0/7.5-4 Series car lift,  mechanical transmission  It has advanced design, reasonable layout, novel style, easy to use and the advantages of long life. Advanced gear box unit. To achieve reliable synchronization of movement and place of the locking feature. you  can operate on each post conveniently, safe and reliable operation,  particularly suitable for: Luxury Large buses, heavy vehicles and other vehicles, the whole car lift  can carried out  easily by the Moving mechanism .
    The product synchronization is good, easy to operate, safe and reliable, If you need,you  can be combined into a double column , Four column, six column,  four column can create 10  20 tons, 30 tons, 40 tons, 6 column can creat   30 tons, 45 tons, single-column is 5 tons, 7.5 tons

Single  column  CAPACITY
 1 master column shall be capable of operating any combination of columns (2/4/6/8 or more).

TYPE

total Lbs

 single column
CAPACITY

TOP

V

KW

VOIT

PACGE

WEIGHT

QJZ2.5*4

 22000LBS

2.5T/5500LBS

1500

10

1.5

380

1100x1100x2570

350

QJZ5.0*4

44000LBS

5.0T/11000LBS

1500

10

3.0

380

1120x1100x2600

580

QJZ5.5*4

50000LBS

5.5T/12000LBS

1500

10

3.0

380

1200x1100x2600

600

QJZ7.5*4

66000LBS

7.5T/16500LBS

1500

10

3.0

380

1140x1150x2600

750

QJZ10.0*4

85000LBS

10.0/22000LBS

1500

10

4

380

1140x1200x2600

900





SAFETY SYSTEM:

Single point, continuously engaged, electrically operated safety device in each column.

JACKING UNIT:

Heavy duty jack, 4position control for ease of mobility (unloaded)

OPERATING MODES:

  • SYSTEM MODE All columns operate from any column in the set.
  • MANUAL MODE Each column shall operate independent of others from its' own control panel.
  • PAIRED MODE: Any column in paired mode will operate simultaneously with any other column in paired mode independent of other columns in the set.
  • ONTROL PANEL LED's: Give visual confirmation of the operational status of each column.




Support bracket for the optional, large stent 4800 RMB / set, the small stent 1380 / set
