Quick Details

  • Design: Two Post
  • Type: Double Cylinder Hydraulic Lift
  • Certification: CE
  • Lifting Capacity: 4000kg
  • Lifting Height(mm): 1850mm
  • Overall Width(mm): 3420mm
  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: hoton
  • Model Number: HC235PE
  • Warranty: 12 Months, 1 year
  • color: blue
  • Operating manual or CD Demo: offered
  • Technical support: lifelong
  • Capacity: 3500kg
  • Motor power: 2.2Kw/220 -380V

Packaging & Delivery

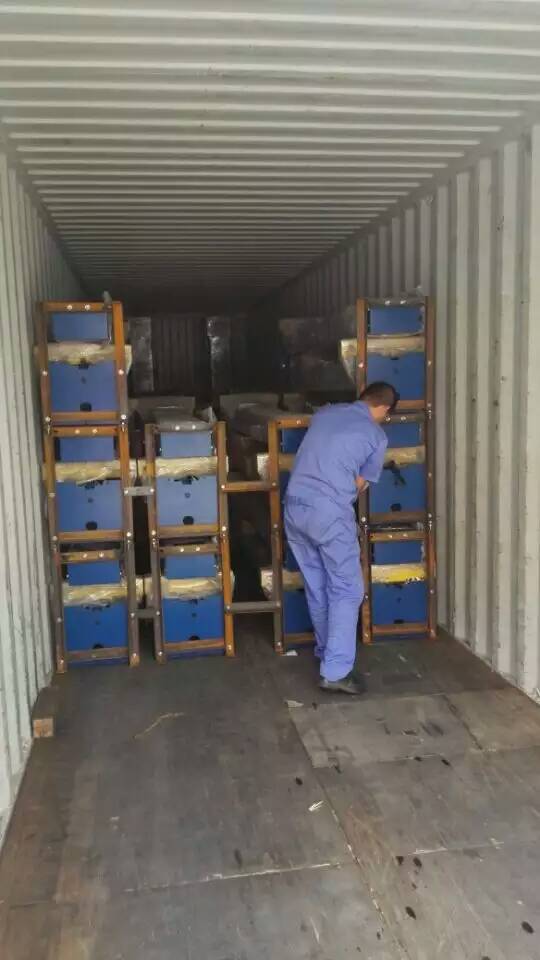

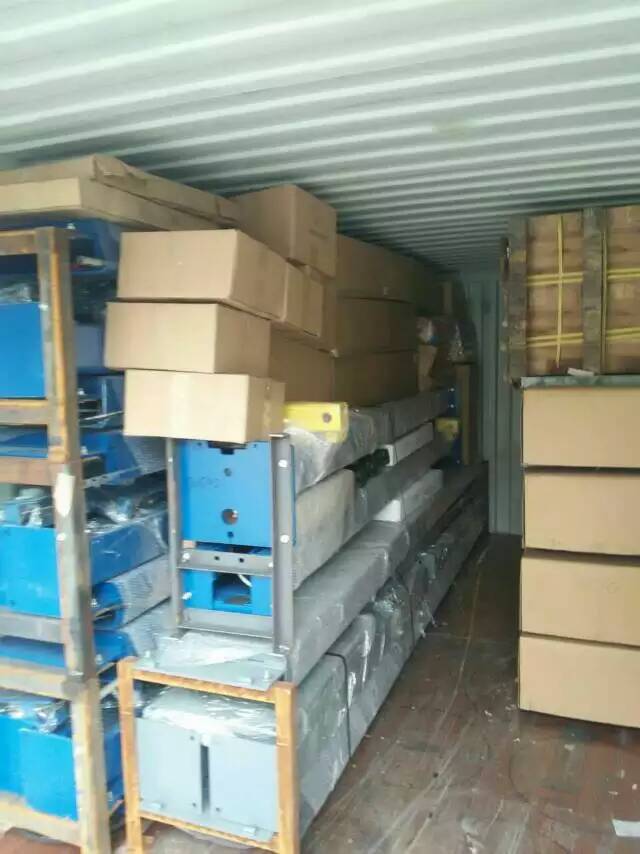

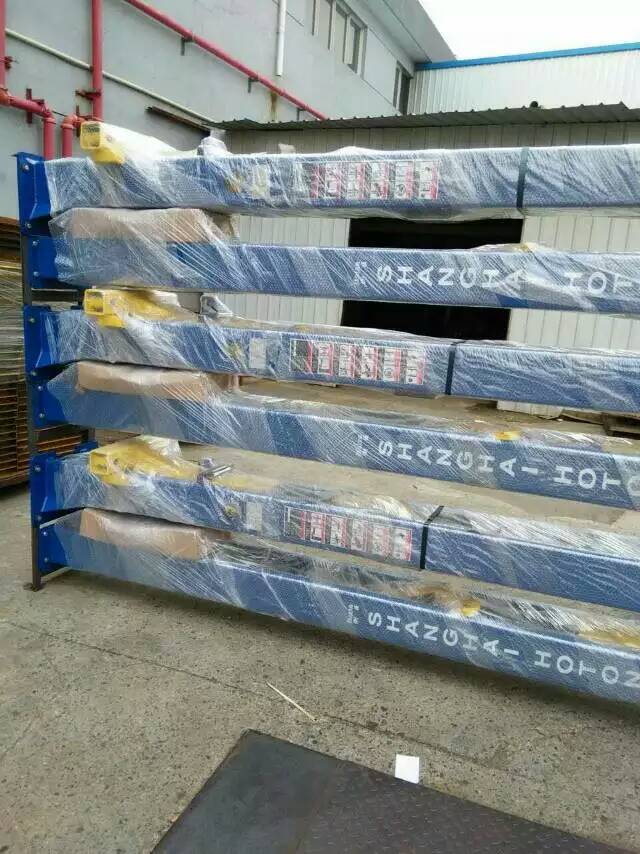

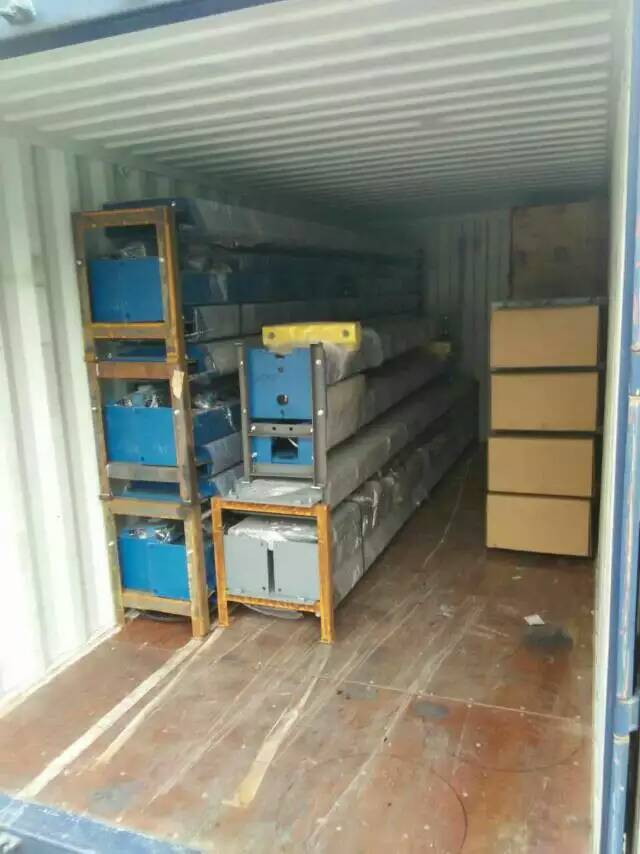

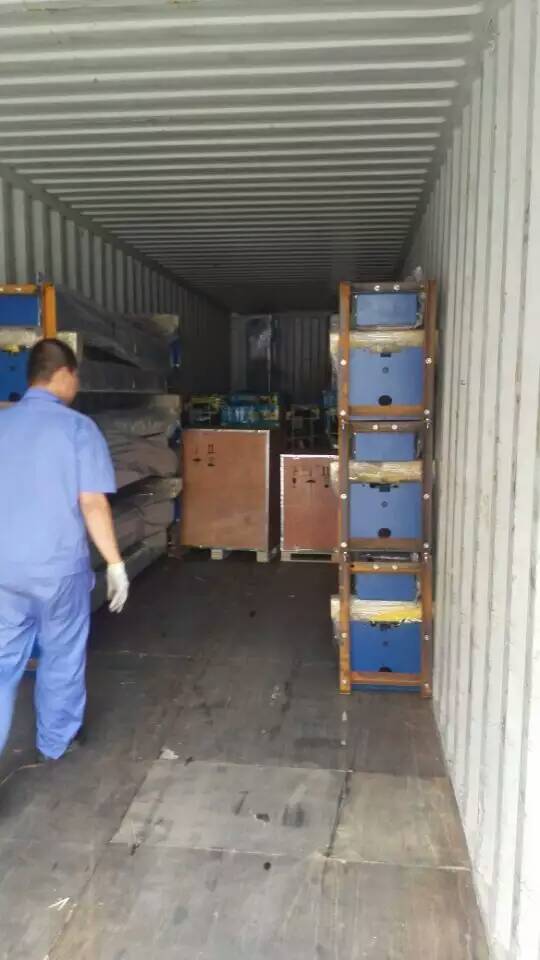

Packaging Details iron frame packing and packaging
Delivery Time one month

Name:Two post lift
Brief intro:

Two post lift with electrical release

STRONG
1. 5mm "international standard" column steel plates made in Shanghai.
2. 8mm brace arm and 6mm Internal sliding column, never deform..
3. Wearable, Anti-High temperature, high strength oiliness macromolecule nylon slide block.
4. Require no less than 150mm cement on the ground, At least C25.
SAFETY
5. Double safe antiskid device, from column ladder safe to close protection by dynamic hydraulic pressure, single side electrical release, ensure double safe staying for vehicles.
6. ABS Control box, 24V operation system, manual lock release for emergency lowering valve.
7. Endure Max 5 T destructive testing , fulfill 3.5T/4T actual working conditions.
8. Chain style pulling device.
QUALITY
9.Total Mold tooling technology, to ensure the conformity of both many a holes and welding places.
10. Digital control raw materials processing center ensure the discrepancies at % stage & product consistency.
POWER
11. Double cylinder dynamic hoist drive device, capacity is more than 3.5T/4T.
12. Aluminum pump device , running time without any break down for at least 40,000 H.

The product passed CE Test and are insures against PICC (insurance  amount is 10million RMB )



Full Data & Specifications:

Model:  HC235PE
Structure:  Two post lift with electrical release
Capacity(kg):    3500  / 4000
Lift height(mm) :  1800  / 1800
Rise time(s):  50  /52
Drop time(s):   22   / 22
Power of motor (kw):    2.2 / 2.2
Power supply(v):  380/220    /   380/220
Machine Height(mm):   2832  / 2826
Machine  Width(mm):  3166  / 3166
Frame Width(mm):   3420   / 3420

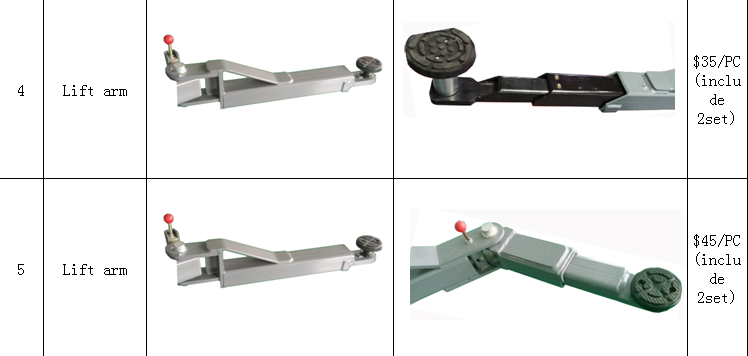

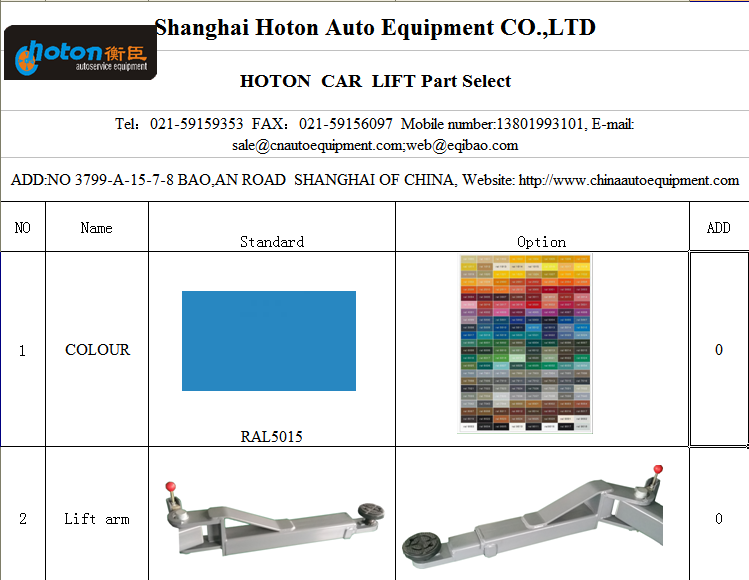

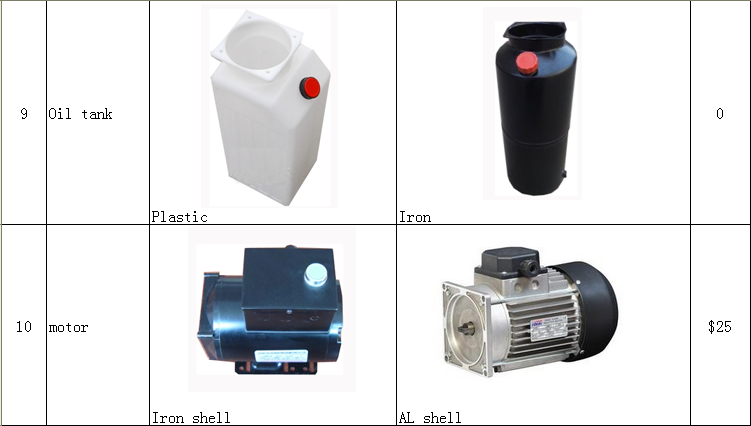

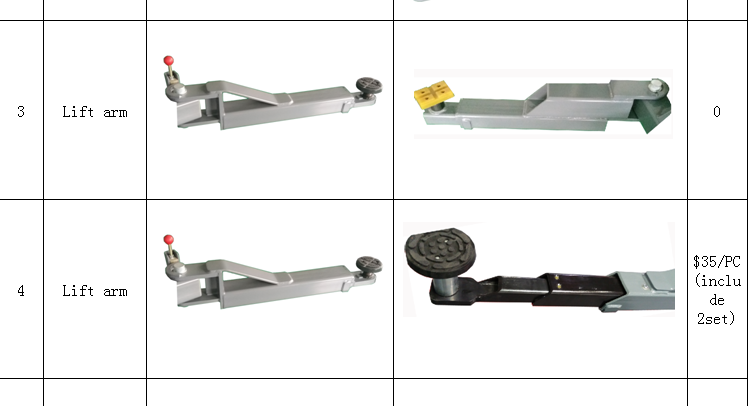

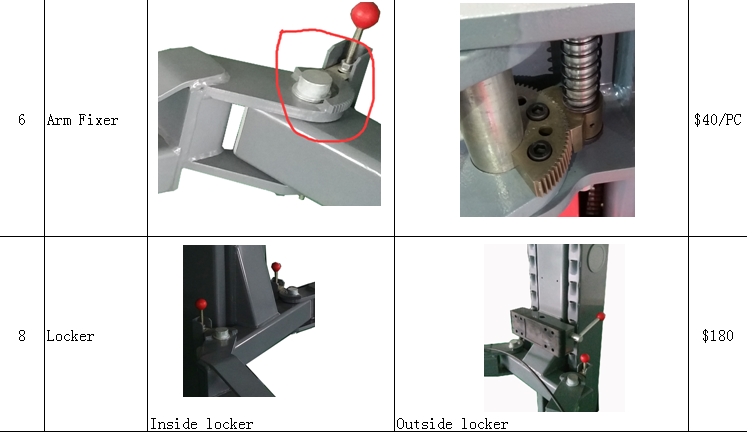

You can select your type







HOTON helps you become a  distributor in Car Repair equipment&tool



Have you onceencountered the followingsituations


1: The scope of car repair & maintenance equipment in your country is incomplete or (some certain) equipment not available.



2: The car repair and maintenance equipments available in your country, whether from China or Europe/USA, are particularly expensive. Besides, After-sale service is not guaranteed.


3: You want to start the business of car repair and maintenance products, but you do not know where to purchase. Although there are lots of Chinese manufacturers/factories, but they only demand bulk purchase, so it is very uneconomical for you to make small orders.


4: You have found a lot of manufacturers in China, but you never know about the quality, so you don’t dare to buy.


5: You want to start the business, but do not know how to install the equipment.



                        ==============================================================================





Now you find us Hoton, and we'll help you once and for all.

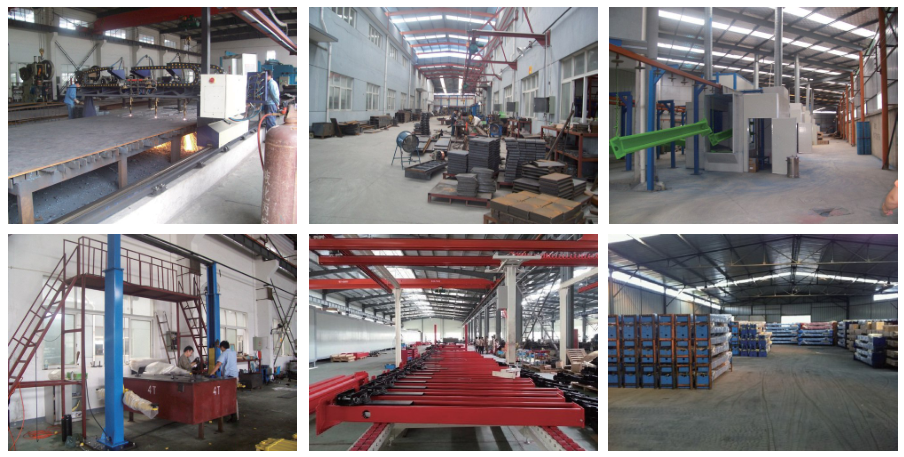

   Please allow me to introduce our company. Our company was established 10 years ago, and now we have our own factories to produce lifts and wheel aligners. We are also one of China's largest wholesalers in Auto Repair & Maintenance Equipment Line. We are also direct sales agents for the best-quality products all over China, including Launch,
Fly-Eagleand other famous international brands.Prices are super reasonable; and thus, we have been equipping lots of auto repair workshops/garages all over the world every year.



            ----------------------------------------------------------------------------------------------------------------------------------------------------

We would like to offer the following service to you:
1: We have a full range of auto repair and maintenance products, fromlarge equipments to small tools, avoiding your spending time and energy to look for every product.

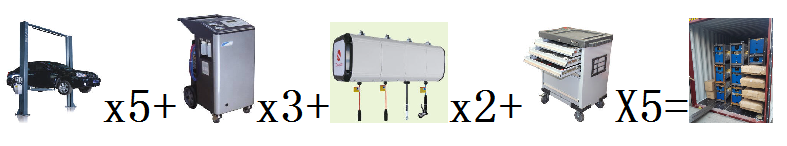

2: We can give yousmall quantities of goods at the most possibly reasonable prices. For each kind/model, you can order one to two, and a number of varieties make up one container, with the result of reducing your procurement cost.


3: Quality of every product from us is guaranteed! Different from other Chinese vendors who only sell products without knowing about them, we know very well the performance, installation and operation of every product. We offer one year warranty for every product we sell. If any part breaks down, we will offer you free ones. And we provide after-sale consulting service 24 hours per day. Please add whats APP +86-13801993101

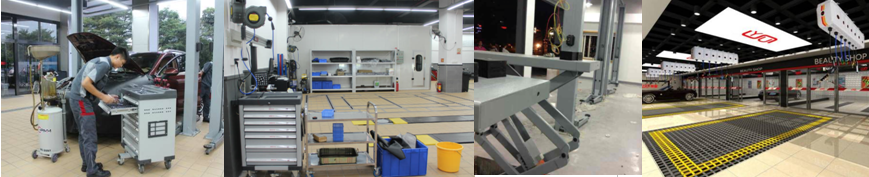

4: We will helpyou guide your customers how to buildauto repair shops, and help you retain customer resources. We caneven send someone to train your staff on how to install the equipment.


5: Anytime we are ready to provide new technologies and new productsto make your customers‘ repair shops come to the fore in the local market.
6: If there is a need, we help you inject funds to establish a joint venture to obtain the support of your local government.



         ===============================================================

How to make it:
1: We will provide the parameters and quotations of all theproducts to you.


2: Based on local characteristicsof your country, we can offer you certainproducts of more varieties.



3: We give you special promotional materials/catalogs to help you explore your market.


4: All inquiries coming from your market will be transferred to your treatment.


5: We will make planning and design for the workshops of your customers free of charge.

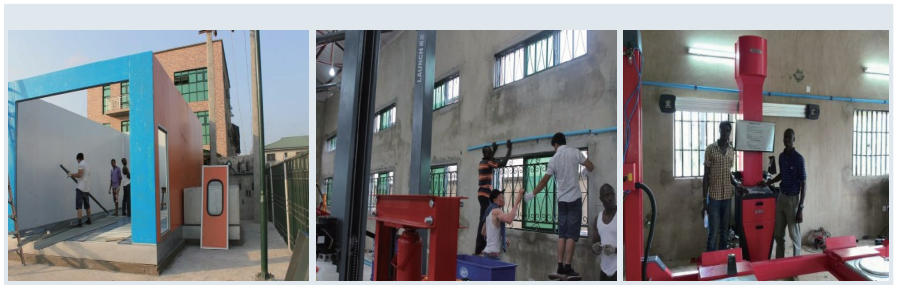

Currently, we have established many such agencies in Global market, such as in Panama, Mozambique, Nigeria, Myanmar, Philippines, etc. During the past years, under our support, they have gained many advanced repair shop orders as well as the establishment of a large number of high-quality customers. Add us, and we willbecome friends, neverto separate.
